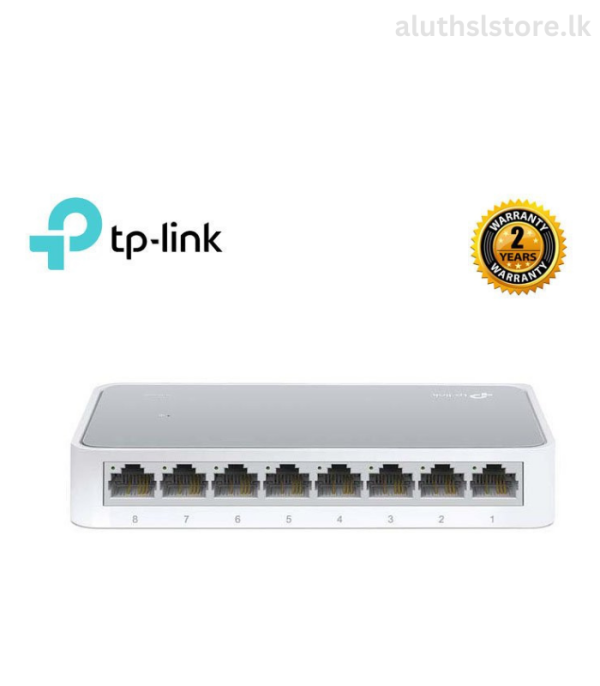

8-Port 10/100Mbps Desktop Switch
-
8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
-
Green Ethernet technology saves power consumption
-
IEEE 802.3x flow control provides reliable data transfer
-
Plastic case, desktop design
-
Plug and play, no configuration required
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD |
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | 100-240VAC, 50/60Hz
(Output: 9VDC / 0.6A) |
| Buffer Size | 768Kb |
| Data Rates | 10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex |
| LED Indicator | Power
Port network activity (on the network module) |
| Dimensions ( W x D x H ) | 5.3 × 3.1 × 0.9 in.
(135 × 79 × 23mm) |
| Max Power Consumption | 2W |
| Max Heat Dissipation | 7.0 BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology
802.3X Flow Control, Back Pressure |
| OTHERS | |
|---|---|
Certification |
FCC, RoHS |
Package Contents |
8-Port 10/100Mbps Desktop SwitchPower AdapterUser Guide |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F);Storage Temperature: -40°C~70°C (-40°F~158°F);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing |
